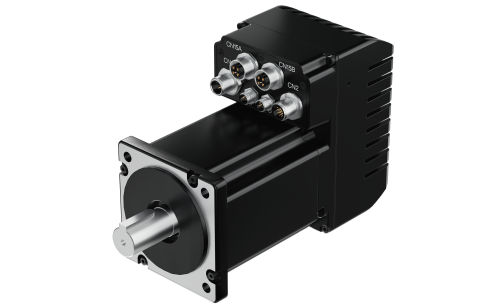

IVI080 0750NX100X M-S200

IVI080 0750NX100X M-S200

Size 80 mm  |  Length (L) 165 mm  |  Interface Modbus-RTU   |  Rated Power 750 Watt  |  Rated Torque 2.39 Nm  |  Rated Current 21 A  |  Rated Voltage 48 Vdc

Codice Prodotto: IVI0800750NX100XM-S200
Dati tecnici Download Dimensioni Combinazioni Software Accessori
Size80 mmLength (L)165 mm
InterfaceModbus-RTU Rated Power750 Watt
Rated Torque2.39 NmRated Current21 A
Rated Voltage48 Vdcn° of Pole10
Rated Speed3000 rpmMax. Peak Torque7.17 Nm
Torque Constant0.113 Nm/AMax. Peak Current63 A
No-Load Current2000 mABack EMF constant6.8 V/kRPM
Rotor Inertia1560 gcm2Weight3.15 Kg
Shaft run out0.05 mmInsulation ClassF 155°C
Protection ClassIP65 Operating Temperature+5°C to +40°C
Humidity5% to 85% not condensing Radial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial force (at mid-shaft)392 N
Max. Axial Force147 NDielectric Strength (for 1min.)600 VAC
Insulation Resistance (min.500 VDC)100 MohmOperating modePosition, Speed, Torque
Encoder Type - StandardMagnetic Incremental/Absolute single turn 2500 CPR Encoder Type - OptionalMagnetic Absolute multi-turn 16bit (single-turn 17bit)
Protective functionsOver/Under voltage, Over current, Overheating, Short circuit Safety featureSafe Torque Off (STO) SIL3/PLe
Debug & configurationSerial interface Digital Inputs4 not isolated 5-24 Vdc PNP
Analog Inputs2 not isolated | 0-10 Vdc Digital Outputs2 not isolated 24 Vdc PNP
