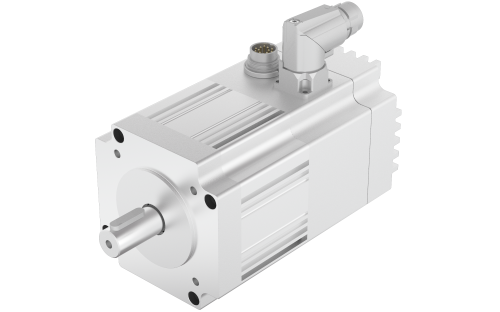

IBI080 0362NE1000 A-S300

IBI080 0362NE1000 A-S300

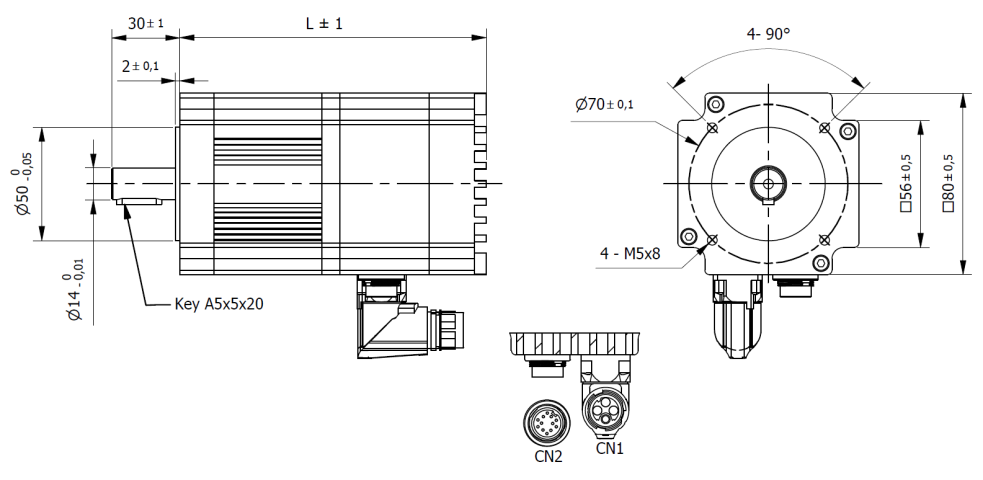

Size 80 mm  |  Length (L) 145 mm  |  Interface Analog   |  Rated Torque 1.13 Nm  |  Rated Power 362 Watt  |  Operating Voltage 24-48 Vdc

Codice Prodotto: IBI0800362NE1000A-S300
Dati tecnici Download Dimensioni Combinazioni Accessori
Size80 mmLength (L)145 mm
InterfaceAnalog Rated Torque1.13 Nm
Rated Power362 WattRated Current13.3 A
Operating Voltage24-48 Vdcn° of Pole8
Rated Voltage40 VdcRated Speed3210 rpm
Max. Peak Torque3.4 NmTorque Constant0.085 Nm/A
Max. Peak Current40 ANo-Load Current600 mA
Rotor Inertia680 gcm2Weight2.35 Kg
Shaft run out0.05 mmInsulation ClassB
Protection ClassIP65 Operating Temperature+5°C to +40°C
Humidity5% to 85% not condensing Radial Play (450g load)0.04 mm
Axial Play (450g load)0.08 mmMax. Radial force (at mid-shaft)330 N
Max. Axial Force764 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 MohmOperating modeSpeed, Torque
Encoder Type - StandardMagnetic Incremental encoder Protective functionsOver current, over/under voltage, overheating, short circuit
Digital Inputs4 not isolated 24 Vdc PNP Analog Inputs1 not isolated | 0-10 Vdc
Digital Outputs2 not isolated 24 Vdc PNP
