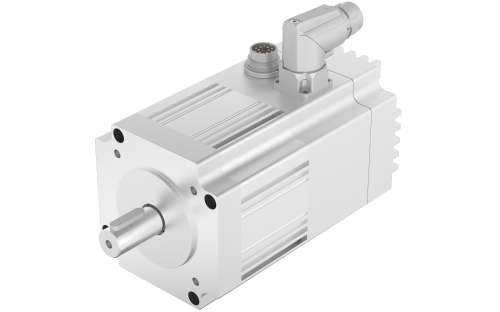

IBI080 0290NE1000 A-S300

IBI080 0290NE1000 A-S300

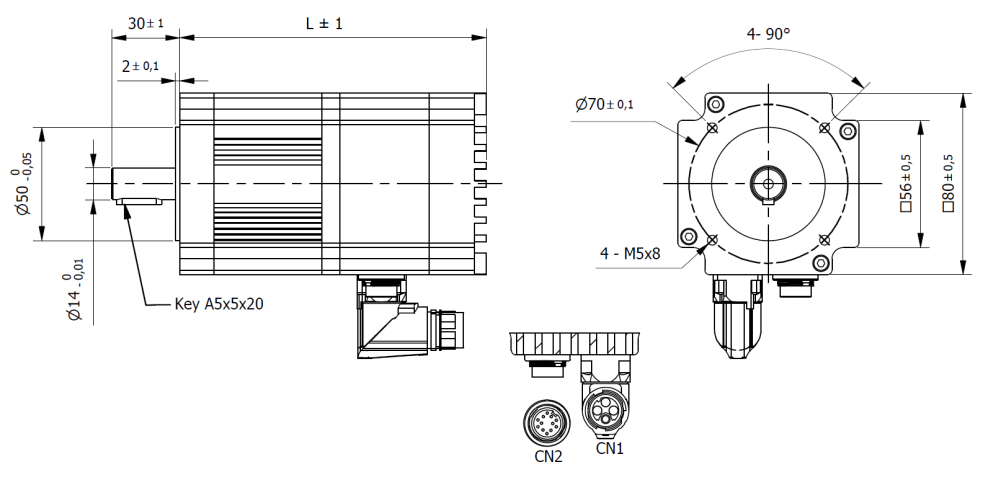

Size 80 mm  |  Length (L) 135 mm  |  Interface Analog   |  Rated Torque 0.8 Nm  |  Rated Power 290 Watt  |  Operating Voltage 24-48 Vdc

Codice Prodotto: IBI0800290NE1000A-S300
Dati tecnici Download Dimensioni Combinazioni Accessori
Size80 mmLength (L)135 mm
InterfaceAnalog Rated Torque0.8 Nm
Rated Power290 WattRated Current10 A
Operating Voltage24-48 Vdcn° of Pole8
Rated Voltage40 VdcRated Speed3210 rpm
Max. Peak Torque2.4 NmTorque Constant0.094 Nm/A
Max. Peak Current30 ANo-Load Current700 mA
Rotor Inertia680 gcm2Weight2.15 Kg
Shaft run out0.05 mmInsulation ClassF
Protection ClassIP65 Operating Temperature+5°C to +40°C
Humidity5% to 85% not condensing Radial Play (450g load)0.04 mm
Axial Play (450g load)0.08 mmMax. Radial force (at mid-shaft)330 N
Max. Axial Force764 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 MohmOperating modeSpeed, Torque
Encoder Type - StandardMagnetic Incremental encoder Protective functionsOver current, over/under voltage, overheating, short circuit
Digital Inputs4 not isolated 24 Vdc PNP Analog Inputs1 not isolated | 0-10 Vdc
Digital Outputs2 not isolated 24 Vdc PNP
