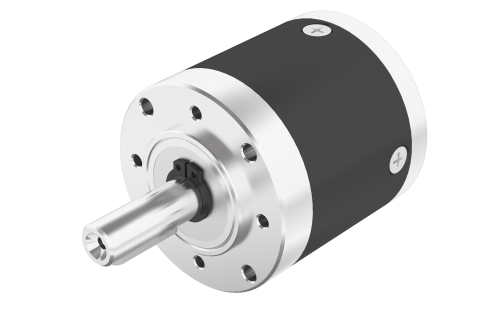

GP42-N2-24

GP42-N2-24

Series GP   |  Size 42 mm  |  Length (L) 65 mm  |  Reduction Ratio 24   |  Nominal Output Torque 4.9 Nm  |  Max. Input Speed 7650 rpm

Codice Prodotto: GP42-N2-24.000

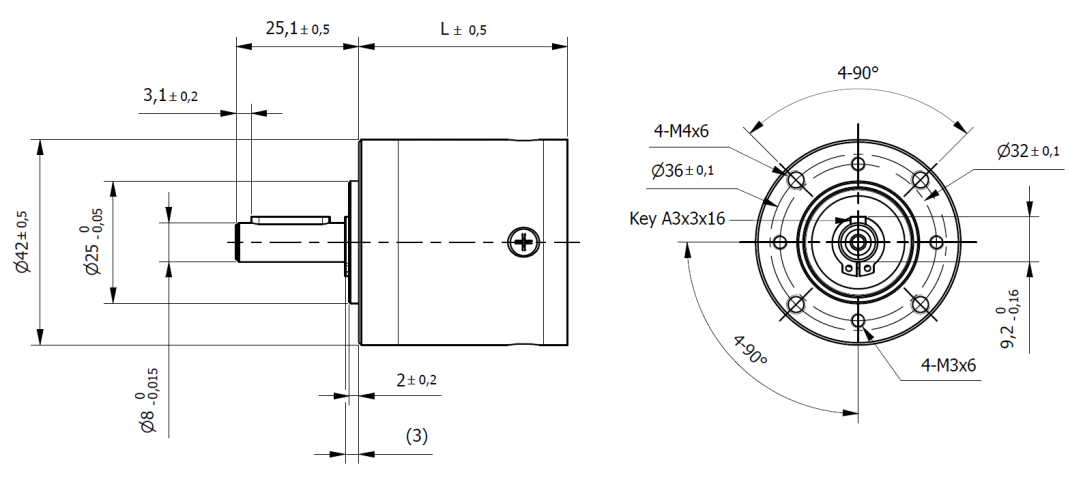

Dati tecnici Download Dimensioni
SeriesGP Size42 mm
Length (L)65 mmStages2
Reduction Ratio24 Nominal Output Torque4.9 Nm
Max. Input Speed7650 rpmMax. Output Torque9.8 Nm
Recommended Input Speed3000 rpmEfficiency86 %
Moment of Inertia(≤φ6.35) 0.55 kgmm2Weight400 g
Backlash at 2% nominal output torque≤1.75 °Press-Fit Max.320 N
Noise level≤50 dBOperating Temperature-15°C +50°C
Protection ClassIP54 Bearing outputBall Bearings
