GP42-N1-5 GP42 -N Low noise | Delta Line

Home   Prodotti   >   Riduttori   >   Riduttori planetari   >   GP42 -N Low noise

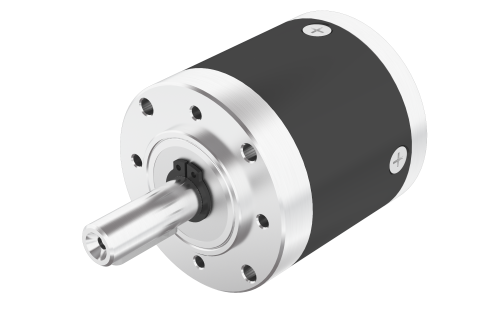

GP42-N1-5

GP42-N1-5

Series GP   |  Size 42 mm  |  Length (L) 51 mm  |  Reduction Ratio 5   |  Nominal Output Torque 1.09 Nm  |  Max. Input Speed 10200 rpm

Codice Prodotto: GP42-N1-5.000

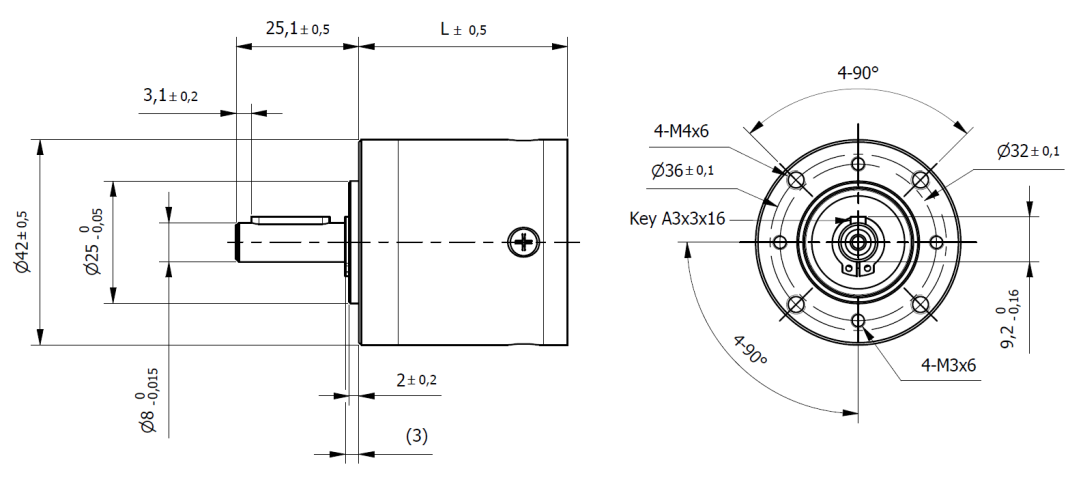

Dati tecnici Download Dimensioni
SeriesGP Size42 mm
Length (L)51 mmStages1
Reduction Ratio5 Nominal Output Torque1.09 Nm
Max. Input Speed10200 rpmMax. Output Torque3.27 Nm
Recommended Input Speed3000 rpmEfficiency92 %
Moment of Inertia(≤φ6.35) 0.42 kgmm2Weight300 g
Backlash at 2% nominal output torque≤1.75 °Press-Fit Max.320 N
Noise level≤50 dBOperating Temperature-15°C +50°C
Protection ClassIP54 Bearing outputBall Bearings
